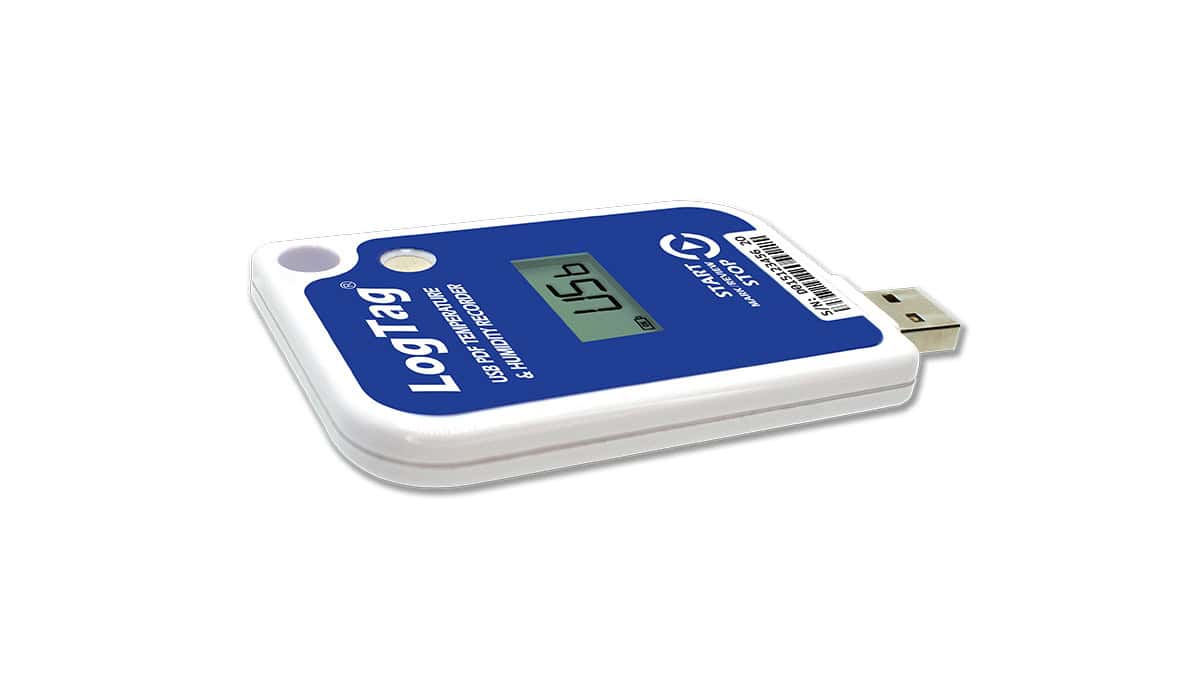

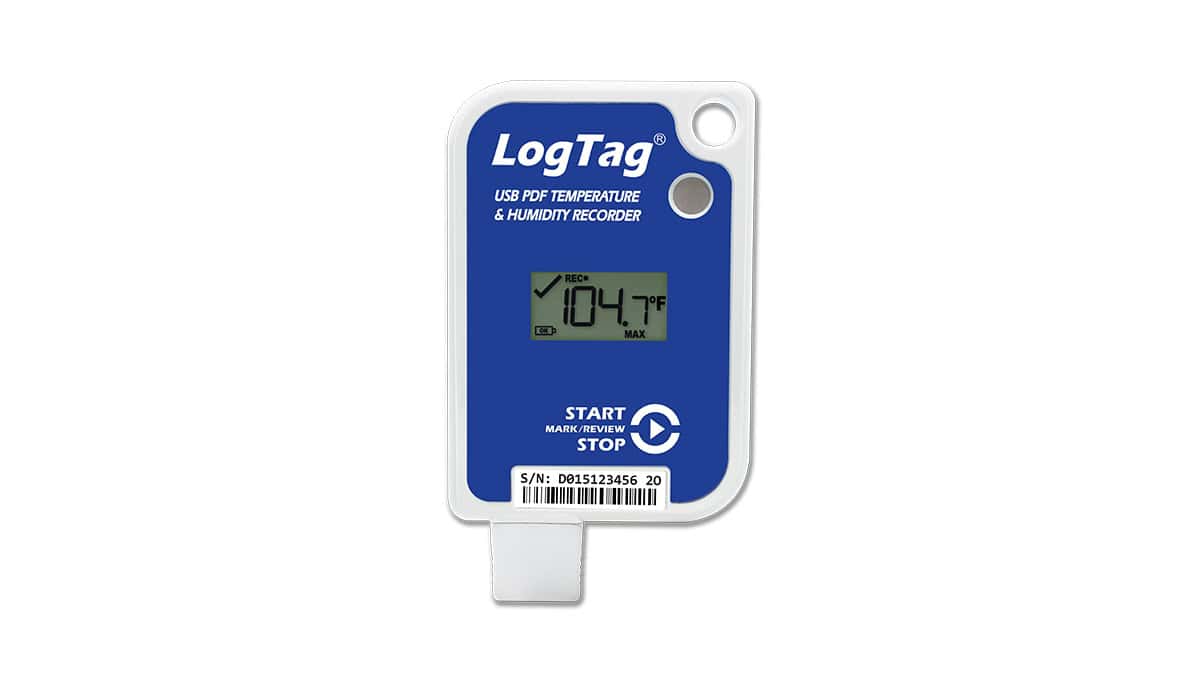

LogTag | HAXO-16U Temperature & Humidity Logger

85,40 ex. tax

  • Temperature & humidity monitoring
  • -30°C to +70°C range
  • Up to 365 days logging
  • 32,000 reading capacity
  • USB direct download
HAXO-16U | LogTag | Temperature and Humidity | Face On | Temperature Data Loggers | Humidity Logger
HAXO-16U Temperature & Humidity Logger 85,40 ex. tax
Request a quote for more than 25 pieces.

The HAXO-16U is a dependable, easy-to-use temperature and humidity data logger designed to protect sensitive goods such as pharmaceuticals, healthcare products, food, flowers, powders and livestock during transportation and storage. With no software required to access your data, users can simply connect the device to a PC via the built-in USB port to instantly generate fast, clear PDF and CSV reports.

Monitoring is made effortless thanks to its bright LCD display, allowing at-a-glance updates during shipping or warehousing. The HAXO-16U supports simple single-button operation, making it quick to mark events or start/stop logging without the need for complicated training. Built to endure tough environments, it features a robust polycarbonate case and operates reliably down to -30 °C, making it ideal for cold chain logistics.

Offering up to 365 days of recording or 32,000 readings, the device is suitable for extended shipping journeys and long-term monitoring. Available in both single-use and multi-use options, it’s a cost-effective choice for businesses who need accurate, reliable monitoring without ongoing software or hardware costs. For those who want more control, configuration is available via the free LogTag® Analyzer software.

Product Model HAXO-16U (single-use and multi-use options available)
Sensor Measurement Range -30°C to +70°C (-22°F to +158°F)
Operating Temperature Range -30°C to +70°C (-22°F to +158°F)
Storage Temperature Range 0°C to +40°C (32°F to +104°F)
Humidity Measurement Range 0%RH to 100%RH (non-condensing), with limitations
Humidity Operating Range 0%RH to 100%RH (non-condensing), with limitations
Humidity Storage Range 20%RH to 60%RH*
Temperature Accuracy ±0.45°C (±0.8°F) from 0°C to +50°C, typically ±0.3°C (±0.6°F)
±0.8°C (±1.4°F) from +50°C to +70°C, typically ±0.5°C (±0.9°F)
±0.95°C (±1.7°F) from -30°C to 0°C, typically ±0.6°C (±1.1°F)
Humidity Accuracy ±3%RH from 20%RH to 80%RH, typically ±2%RH
±5%RH from 0%RH to 20%RH, typically ±4%RH
±5%RH from 80%RH to 100%RH, typically ±4%RH
Humidity Resolution Better than 0.1%RH
Temperature Resolution Better than 0.1°C or 0.1°F
Recording Capacity 32,000 logs, up to 365 days at 16 min intervals
Sampling Interval Configurable from 10 seconds to 18 hours
Logging Start Options Push button or date/time start
Environmental IP61 with USB cap fitted
Power Source CR2450 3V Li-MnO2 coin cell (non-rechargeable, non-replaceable)
Battery Life 3 year storage, 2 years normal use (based on 5 minute logging)
Connection Interface Built-in USB 2.0
Size 107 mm (H) x 54.5 mm (W) x 8.6 mm (T)
Weight 46.8g
Case Material Polycarbonate

Check out LogTag’s HAXO-16U tutorial video.
